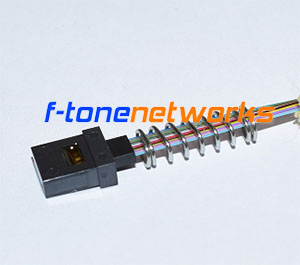

MT-MT带纤跳线
Description
凯时娱乐生产的12芯MT-MT跳线被用于一种平行光手艺的？？？？？？椋≦SFP+SR4），，，，这种？？？？？？橛美磁连光学透镜和外部端口。。。。。。我们使用低消耗的MT套圈，，，，使用OM2或者OM3光纤来实现低消耗。。。。。。总长度公差±0.15mm，，，，MT套圈的公差±0.05mm，，，，因此能在？？？？？？橹泻苄〉牡胤绞迪峙连。。。。。。
特点：
● 传输速率：40Gbps/100Gbps
● 听从GR-1435
● 建构简朴易于定位
● 低本钱
● 定制化产品
产品参数
|
条款 |
单模 |
多模 |
单位 |
|
插损 |
0.5 |
0.6 |
dB |
|
回损 |
55 |
20 |
dB |
|
内径 |
um |
||
|
耐久性 |
200 |
time |
|
|
种类 |
Corning ZBL |
OM3 |
|
|
事情温度 |
-20--+70 |
℃ |
|
产品应用
● QSFP
● SFP+活跃光缆
● 平行光收发？？？？？？
● 超等盘算机
● 通讯
● 军事应用
● 数据中心
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
