波分复用器
3端口 DWDM
Description
产品先容:

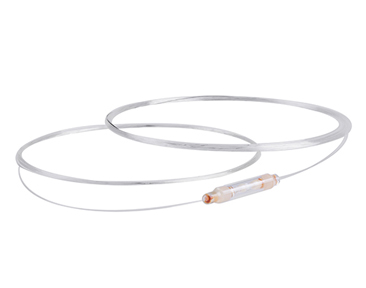

3端口 DWDM器件主要用于无源波分复用？？？？,是一种基于TFF(薄膜滤波器)的波分复用手艺,具备多种封装尺寸、波长可选,由公共端(COM)、透射端(Pass)、反射端(Reflect)三端口组成;DWDM具有100GHz、200GHz等信道距离，，，，，，相关于CWDM而言,极大地提高了事情波长数目,从而大大地增添了信号传输速率和通讯容量,适用于长距离,大容量远程干线网,或超大容量的城域网焦点节点,普遍应用于电信5G、城域网、主干网、数据中心等领域。 。 。。
产品特征:
● 低插入消耗 ≦0.6dB
较低的插入消耗,使DWDM器件运用在波分复用系统内里时拥有较低的信号衰减,从而降低对信号发射器的功率要求。 。 。。
● 高隔离度
较高的隔离度值,使DWDM器件运用在波分复用系统内里多信号传输时举行充分的信号隔离,有用避免信号之间 相互串扰导致传输信号失真。 。 。。
● 成熟生产工艺
凯时娱乐3端口DWDM器件具有成熟的生产工艺,光路接纳无胶及半自动条件封装制作,性能稳固可靠,支持-40℃~+85℃
的卑劣情形下事情, 包管信号的稳固传输。 。 。。
● 系统追溯、品质包管
凯时娱乐自主研发的生产信息治理系统,每只产品均有完整的电子流程,确保器件的品质可靠性和追溯性。 。 。。
● 切合国际标准
凯时娱乐的3端口DWDM器件切合RoHS,知足TelcordiaGR-1209-CORE与GR-1221-CORE,也知足行业的168小时PCT可靠性实验。 。 。。
产品规格:
| 参数 | 单位 | 3端口DWDM |
| 事情波长 | nm | 1500~1600m |
| 信道距离 | GHz | 100G/200G |
| 透射带宽 | nm | ±0.12nm/±0.25nm |
| 透射插损 | dB | ≤0.8 |
| 反射插损 | dB | ≤0.4 |
| 透射相邻隔离度 | dB | ≥28 |
| 透射非相邻隔离度 | dB | ≥45 |
| 反射隔离度 | dB | ≥15 |
| 回波消耗 | dB | ≥50 |
| 偏向性 | dB | ≥45 |
| 纹波消耗 | dB | ?≤0.3 |
| 封装尺寸 | mm | Φ4.0xL30mm；；； MINI：Φ3.2xL30mm、Φ3.0xL30mm、Φ2.6xL25mm、Φ2.2xL25mm |
| 事情温度 | ℃ | -40~+85 |
