标准光？ ？
1×9 CWDM(1270~1430) 1.25G 60km 单发光？ ？
Description
1×9 CWDM(1270~1430) 1.25G 60km 单发光？ ？
Product Description
F-tone Networks’s FTTR-TCxx12-xx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.5Gbps. These modules are fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provide the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate for communications.
Product Features
● CWDM Laser Diode Transmitter
● Up to 80 Km on 9/125μm SMF
● 3.3V or 5Vpower supply
● SC/ST/FC duplex optical interface
● (LV)PECL Differential Input
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard ：0 to+70℃) or (Extended： -20°C to +85°C)
Application
● Gigabit Ethernet
● Fiber Channel
● Digital Video Transmission System
● Other Optic Link

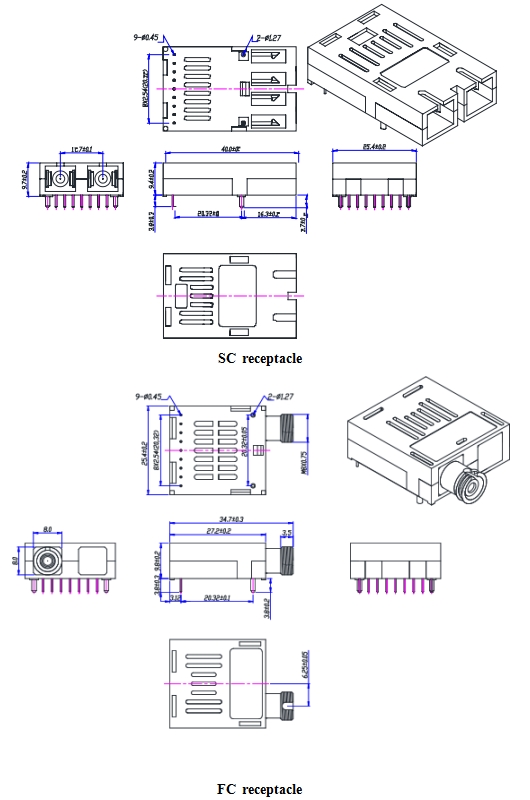

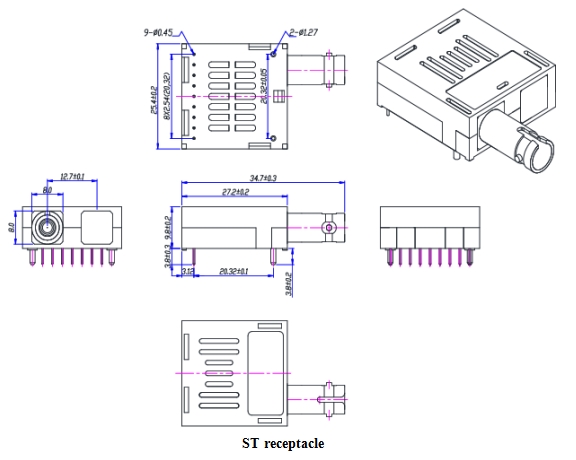

Module Outline Drawing (Units in mm)
Ordering information
|
产品型号 |
基本参数 |
|
FTTR-TCxx12-20 |
1x9光？ ？-CWDM单发(1270-1430)-1.25G-20KM |
|
FTTR-TCxx12-40 |
1x9光？ ？-CWDM单发(1270-1430)-1.25G-40KM |
|
FTTR-TCxx12-60 |
1x9光？ ？-CWDM单发(1270-1430)-1.25G-60KM |
|
FTTR-TCxx12-20 |
1x9光？ ？-CWDM单发(1450-1610)-1.25G-20KM |
|
FTTR-TCxx12-40 |
1x9光？ ？-CWDM单发(1450-1610)-1.25G-40KM |
|
FTTR-TCxx12-80 |
1x9光？ ？-CWDM单发(1450-1610)-1.25G-80KM |
注：本产品有天下产化型号可选。。。。 。，仅展示部分参数，，若有需要，，请您联系凯时娱乐。。。。。 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
